Shingletown Emergency Radio (SER)

Radios and Antenna Systems for your Consideration

Page Last Updated:
Thursday, 22-Apr-2021 00:10:13 EDT

Even with the Coronavirus shutdown of California
Ham Radio Outlet is still able to Process Internet orders.
Amazon and DX Engineering should also be processing orders.
This may change as things progress, other states are also shutting down

Radios for your Consideration

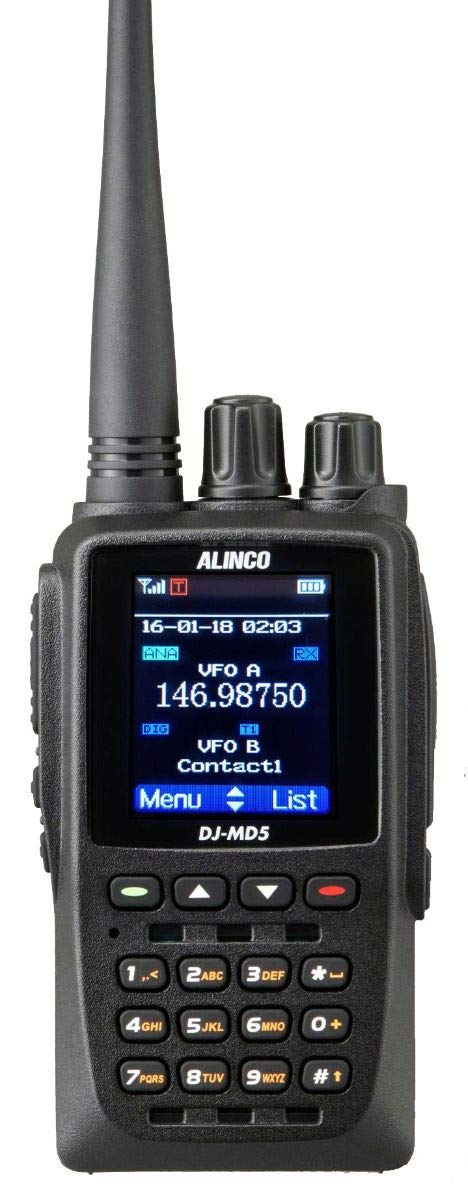

Alinco DJ-MD5TGP and DJ-MD5T
5 Watts/2.5 Watts/1 Watt/0.2 Watt
Dual Band VHF / UHF
Dual Watch
136-174MHz & 400-480MHz Part 90
SER Plan Compatible
4000 channels, 250 zones, 250 scan lists

for Hams & Future Hams:
Complex, with Learning Curve

-------------------------------
Brochure
Manual Download
PC Software Guidance

Normally in stock @ Bentronics Redding, Ca
HRO - Ham Radio Outlet
DJ-MD5T Without GPS ~~$149.95~~ $128.95 + Sales Tax	DJ-MD5TGP With GPS ~~$169.95~~ $148.95 + Sales Tax
Extra Battery EBP-88 Belt Clip EBC-34
Speaker Mic EMS-76
Car Adapter EDH-40

Click picture to enlarge
Don't have one to rate,
others reviews rate it very highly

AnyTone AT-D878UV PLUS HT
with GPS / with or without Bluetooth
7/5/2.5/1W VHF, 6/5/2.5/1W UHF
Dual Band VHF / UHF
Dual Watch
136-174 MHz & 400-480 MHz Part 90
4,000 channels, 250 zones, 250 scan lists
Display 1.77-inch color TFT screen
IP-54 Water and Dust Resistant
SER Plan Compatible

for Hams & Future Hams:
Complex, with Learning Curve

-------------------------------
Manual
There is no PC Software Manual for this radio,
but the Alinco MD5 one covers much of this.

Normally in stock @ Bentronics Redding, Ca
Powerwerx
AT-D878UV Without Bluetooth $219.99 + Sales Tax & Shipping	AT-D878UV-BT With Bluetooth $239.99 + Sales Tax & Shipping
Ham Radio Outlet also carries these radios

Click picture to enlarge

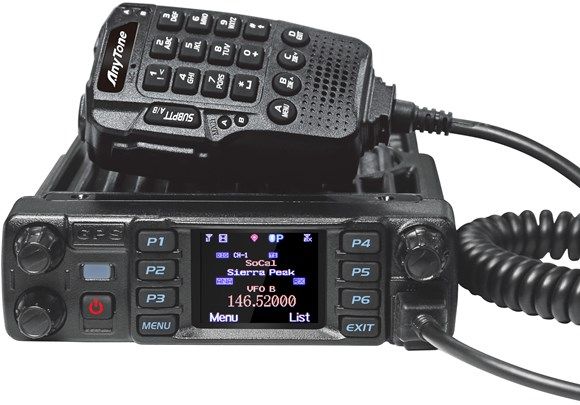

Anytone AT-D578UV III Pro DMR Mobile
with GPS and Bluetooth
50 Watts (45 on UHF)/25 Watts/10 Watts/1 Watt
Dual Band: VHF / UHF
Dual Watch / Dual Receivers
136-174 MHz & 400-480 MHz Part 90
4,000 channels, 250 zones, 250 scan lists
Display 1.77 inch color TFT Screen
Ranging function between radios with GPS
Crossband repeater function
SER Plan Compatible

for Hams & Future Hams:
Complex, with Learning Curve

-------------------------------
Manual Or Manual Download
There is no PC Software Manual for this radio,
but the Alinco MD5 one covers much of this.

Normally in stock @ Bentronics Redding, Ca
Powerwerx	OR	HRO
AT-D578UV $399.99 + Sales Tax & Shipping		AT-D578UV $399.99 + Sales Tax & Shipping

Why a DMR .VS. Analog Radio

Even if you are not interested in DMR right now you may in the future, plus the DMR radios have the following features:
    More channels. The ones on this page offer 4,000. You will likely never use this many but you will need more than the 128 of some radios. The SER plan already has created 8 Digital Simplex Frequencies and has allocated a total of 200 channels for future possible use.
    Up to 250 Zones. I haven't found a need for them, except if you have more than 250 channels in your radio.
    Up to 250 Scan Lists of 50 channels each. These you can definately use. One for the SER plan. One (or more) to skip a frequency being used or is not working correctly (like 760 when solar is not working.) One (or more) if you go out out of area so you can scan the frequencies in that area. One (or more) to scan whatever.
    There may be analog radios that offer these features, but I haven't seen them.

Advantages of a Handheld (HT), Mobile or Base Radio?

Handheld (HT) Radio:
    Pros: Very portable. Self contained (Radio, Antenna & Power). Usually less expensive.
    Cons: Less power. Usually not as good of receiver (direct conversion instead of superheterodyne).

Mobile Radio:
    Pros: More power. Probably has better/more sensitive receiver (may be superheterodyne). Can be used as a base station with a 12v power source and external antenna. Probably had more features than a handheld (HT).
    Cons: Not very portable. Larger than a handheld (HT). Requires 12v power. Requires an external antenna.

Base Radio:
    Pros: May have more power than a handheld (HT) or mobile. Probably has better/more sensitive receiver (may be superheterodyne). May have more features than a handheld (HT) or mobile.
    Cons: Not very portable. Larger than a handheld (HT) or mobile. May require a 12v power source. Requires an external antenna.

Click picture to enlarge
Alinco DJ-500TB - Part 90

TX and RX includes MURS and FRS
SER Plan Compatible
136-174 MHz and 400-480 MHz
RX only: 76-108 MHz
-------------------------------
Alinco DJ-500T
TX Frequency Coverage
144-148MHz & 420-450MHz
NO MURS / FRS
NOT SER Plan Compatible
RX ONLY: 76-108MHz &
136-174MHz and 400-480MHz
-------------------------------
BOTH
2m/440 Dual band
5 Watt, 200 Memories
Variety of scanning modes
i-Ion battery pack
-------------------------------
Brochure
Flyer

HRO	DX Engineering
Alinco DJ-500T A Thumbs Up if you don't need MURS/FRS NOT SER Plan Compatible ~~$129.95~~ $89.95 + Sales Tax	Alinco DJ-500TB SER Plan Compatible ~~$129.95~~ $118.95 + Sales Tax
Extra Battery EBP-88 Belt Clip EBC-34	Extra Battery EBP-88 Belt Clip EBC-34
Speaker Mic EMS-76	Speaker Mic EMS-76
Car Adapter EDH-40	Car Adapter EDH-40

Click picture to enlarge

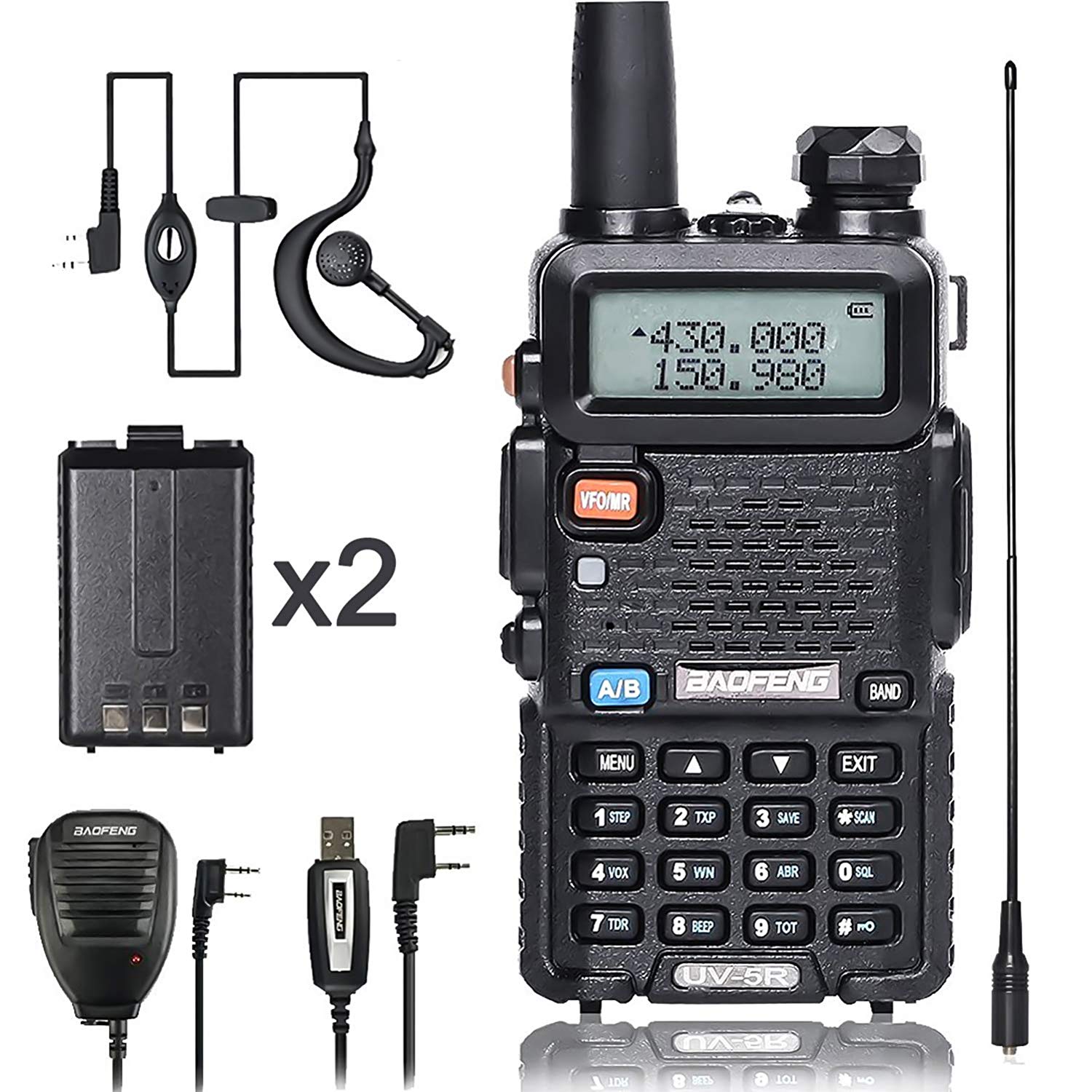

Baofeng UV-5R
Dual Band Two-Way Radio
4 Watts/1 Watt
128 Channels
136-174MHz VHF
& 400-480MHz UHF
SER Plan Compatible
But have reliability issues.

Amazon

Radio $22.99 + Sales Tax

Radio Package (shown)
$38.99 + Sales Tax

Click picture to enlarge
Baofeng BF-F8HP
Dual Band Two-Way Radio
8 Watts/4 Watts/1 Watt
128 Channels
136-174MHz VHF
& 400-480MHz UHF
SER Plan Compatible
But have reliability issues.

Amazon

Radio $62.89 + Sales Tax

Radio Package (shown)
Re-Branded as Greaval
$45.99 + Sales Tax

CAUTION:
Why is this Re-Branded
package cheaper than
the brand radio?

We suggest at least an extra battery and a better antenna for the hand held (HT) radios. A spare radio in case one fails is also a good idea. Especially with the cheap ones.

This not like going out and buying an AM/FM or solar emergency radio. These radios talk and receive. If not programmed correctly you will not be able
to talk and listen to other SER radios and possibly no one else. If your radio is not programmed for the SER plan, it won't work on the SER plan!

Radios programed : Baofeng UV-5R, Baofeng BF-F8HP, Alinco DJ-500TB, Alinco DJ-MD5TGP and DJ-MD5T,
Anytone AT-D578UV III Pro, Yaesu FT-8900R. There is no charge for these radios. There may be others, check first.

If you don't use your radio: you may not know how to work it, if it transmits or if you can reach anyone!

Antenna Systems for your Consideration

Each line (row) has a complete antenna system, only needing assembly, installation and your radio.

Your antenna system is a critical part of your radio communications.

JUST BECAUSE YOU CAN HEAR THEM, DOESN'T MEAN THEY CAN HEAR YOU!

Due to the complexity of items on this page, here are some suggestions for those new to two way radios
For non-hams	Home/Base Option HB4B: OSJ - Dual Band GMRS & MURS 152/462 MHz, From $101.78 + $5.00 Shipping + Tax for complete set-up.
For Hams	Home/Base Option HB2: Tram 1180 Amateur Dual-Band 144-148/430-450 MHz From $80.72 + Tax for complete set-up. The advantage of this is that if you upgrade from this you can use it as a mobile with the addition of a car mount.
Ways to mount an outside antenna, with pictures.

Dual Band Antennas - 2 Meter (VHF) / 70 cm (UHF)

Usage

Antenna

Ground
Plane

Adapter

Coax
Cable

Mounting
Bracket

Total
Price

Outside Options (not in house or car / working or walking around)

Outside
Included
w/Radio

Rubber Duck
that came with radio. Poor range.
NOT recommend

Not Needed

Included
With
Radio

Outside
Option O1

Rubber Duck Nagoya NA-771
2m/70cm
High Gain
2.5 dBi
15.6 Inch Long

Amazon

$16.99 + Sales Tax

Not Needed

$16.99
+ Tax

Outside
Option O2

Rubber Duck Diamond SRH770S
2m/70cm
High Gain
144MHz 2.15 dBi
440MHz 4.5 dBi
27.5 Inch Long

Ham Radio Outlet

$34.95 + Sales Tax

Not Needed

SMA-F to SMA-F
Barrel Adapter

Amazon

$5.82 + Sales Tax

- - - - - - - - OR - - - - - - - -

SMAJ SMA Female to Female Barrel Adapter protects antenna jack

SMAJ: SMA-F to SMA-F
Barrel Adapter

Ham Radio Outlet

$9.95 + Sales Tax

Not Needed

$40.77
+ Tax

Mobile / Car Options

Mobile/Car
Option M1

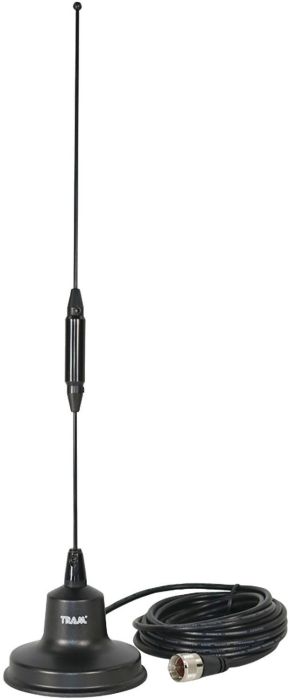

Tram 11861
Dual Band SO239
144-148mhz 2.4 dBd
440-450mhz 5 dBd
180 Watt Rating
3 1/2" Magnet

Amazon

$38.53 + Sales Tax

Not Needed

DHT Electronics
2pcs RF Coax Adapter
SMA Female to SO239

Amazon

$5.50 + Sales Tax

Or use the 3' jumper below under
Better Coax & Jumpers

Not Needed,
Included

Not Needed

$44.03
+ Tax

Home / Base Options

Home/Base
Option HB1

Tram 1181
Amateur Dual-Band
NMO 19" antenna
140-170 MHz Unity gain
430-470 MHz 2.5 dBd

Amazon

$19.04 + Sales Tax

TRAM 1465
Land Mobile
Base Ground
Plane Kit
SO239

Amazon

$28.60 + Sales Tax

DHT Electronics
2pcs RF Coax Adapter
SMA Female to SO239

Amazon

$5.50 + Sales Tax

Or use the 3' jumper below under
Better Coax & Jumpers

Coax Cable
RG8X Cable
Loss Per 100' 3.8 dB @ 150 MHz
7.9 dB @ 440 MHz
PL259 to PL259

Amazon

20 feet
$21.48 + Sales Tax

50 feet
$24.95 + Sales Tax

Other Lengths Available

Not Needed

From
$71.01
+ Tax

Longer
coax will
increase
price.

Home/Base
Option HB2

Tram 1180
Amateur Dual-Band
NMO 37" Antenna
144-148 MHz 2.4 dBd
430-450 MHz 4.5 dBd
1/2 Wave VHF
5/8 Wave UHF

Amazon

$28.75 + Sales Tax

TRAM 1465
Land Mobile
Base Ground
Plane Kit
SO239

Amazon

$28.60 + Sales Tax

DHT Electronics
2pcs RF Coax Adapter
SMA Female to SO239

Amazon

$5.50 + Sales Tax

Or use the 3' jumper below under
Better Coax & Jumpers

Coax Cable
RG8X Cable
Loss Per 100' 3.8 dB @ 150 MHz
7.9 dB @ 440 MHz
PL259 to PL259

Amazon

20 feet
$21.48 + Sales Tax

50 feet
$24.95 + Sales Tax

Other Lengths Available

Not Needed

Mobile Antenna with Ground Plane Kit VHF UHF

From
$80.72
+ Tax

Longer
coax will
increase
price.

Home/Base
Option HB3

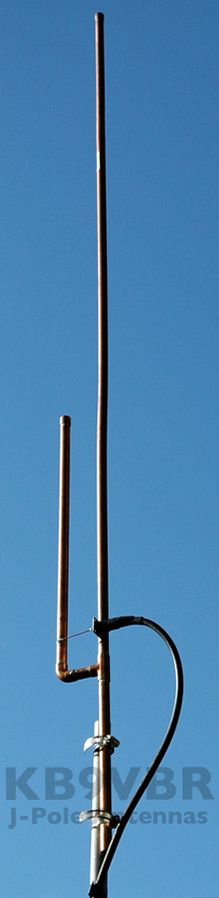

2 Meter J-Pole Antenna
Design End-fed 1/2 wave vertical
Bandwidth 4+ MHz from 146 MHz
1/2 inch Type-M Copper tubing
Gain 3 dBi
SO-239 or N Female
Length 69"

KB9VBR
$34.00 + 9.95 Shipping

Not Needed

DHT Electronics
2pcs RF Coax Adapter
SMA Female to SO239

Amazon

$5.50 + Sales Tax

Or use the 3' jumper below under
Better Coax & Jumpers

Coax Cable
RG8X Cable
Loss Per 100' 3.8 dB @ 150 MHz
7.9 dB @ 440 MHz
PL259 to PL259

Amazon

20 feet
$21.48 + Sales Tax

50 feet
$24.95 + Sales Tax

Other Lengths Available

Wilson Electronics
Pole Mount for
Outside Home Antenna
10" length

Amazon

$19.41 + Sales Tax

From
$86.73
+ Tax

Longer
coax will
increase
price.

Home/Base
Option HB4

Open Stub J-Poles
3 of the Versions:
A: OSJ - Dual Band Ham
   J-Pole 146/440 MHz
B: OSJ - Dual Band GMRS
   & MURS 152/462 MHz
C: OSJ - Dual Band Search
   & Rescue 155/460 MHz
All come with SO239s

Arrow Antennas

Open Stub
J-Poles
$59.00
+ Sales Tax

Not Needed

DHT Electronics
2pcs RF Coax Adapter
SMA Female to SO239

Amazon

$5.50 + Sales Tax

Or use the 3' jumper below under
Better Coax & Jumpers

Coax Cable
RG8X Cable
Loss Per 100' 3.8 dB @ 150 MHz
7.9 dB @ 440 MHz
PL259 to PL259

Amazon

20 feet
$21.48 + Sales Tax

50 feet
$24.95 + Sales Tax

Other Lengths Available

Wilson Wall Bracket Wilson Electronics
901117 Pole Mount for
Outside Home Antenna
10" length

Amazon

$19.41 + Sales Tax

From
$101.78
+ $5.00 Shipping
+ Tax

Longer
coax will
increase
price.

Home/Base
Option HB5

Diamond X30A
Dual-Band SO239
2m/70cm, 150 Watts
144-148 MHz 3.0 dBi
440-450 MHz 5.5 dBi
4.5 Feet Height

DX-Engineering

X30A
$69.99 + Sales Tax

Not Needed

DHT Electronics
2pcs RF Coax Adapter
SMA Female to SO239

Amazon

$5.50 + Sales Tax

Or use the 3' jumper below under
Better Coax & Jumpers

Coax Cable
RG8X Cable
Loss Per 100' 3.8 dB @ 150 MHz
7.9 dB @ 440 MHz
PL259 to PL259

Amazon

20 feet
$21.48 + Sales Tax

50 feet
$24.95 + Sales Tax

Other Lengths Available

Wilson Electronics
901117 Pole Mount for
Outside Home Antenna
10" length

Amazon

$19.41 + Sales Tax

From
$112.77
+ Tax

Longer
coax will
increase
price.

Home/Base
Option HB6

Diamond X50A
Dual-Band SO239
2m/70cm, 200 Watts
144-148 MHz 4.5 dBi
440-450 MHz 7.2 dBi
5.6 Feet Height

DX-Engineering

X50A
$94.99 + Sales Tax

Not Needed

DHT Electronics
2pcs RF Coax Adapter
SMA Female to SO239

Amazon

$5.50 + Sales Tax

Or use the 3' jumper below under
Better Coax & Jumpers

Coax Cable
RG8X Cable
Loss Per 100' 3.8 dB @ 150 MHz
7.9 dB @ 440 MHz
PL259 to PL259

Amazon

20 feet
$21.48 + Sales Tax

50 feet
$24.95 + Sales Tax

Other Lengths Available

Wilson Electronics
Pole Mount for
Outside Home Antenna
10" length

Amazon

$19.41 + Sales Tax

From
$137.77
+ Tax

Longer
coax will
increase
price.

Home/Base
Option HB7

Diamond X200A
Dual-Band SO239
2m/70cm, 200 Watts
144-148 MHz 6.0 dBi
435-450 MHz 8.0 dBi
8.3 Feet Height

DX-Engineering

X200A
$124.99 + Sales Tax

Not Needed

DHT Electronics
2pcs RF Coax Adapter
SMA Female to SO239

Amazon

$5.50 + Sales Tax

Or use the 3' jumper below under
Better Coax & Jumpers

Coax Cable
RG8X Cable
Loss Per 100' 3.8 dB @ 150 MHz
7.9 dB @ 440 MHz
PL259 to PL259

Amazon

20 feet
$21.48 + Sales Tax

50 feet
$24.95 + Sales Tax

Other Lengths Available

Wilson Electronics
901117 Pole Mount for
Outside Home Antenna
10" length

Amazon

$19.41 + Sales Tax

From
$167.87
+ Tax

Longer
coax will
increase
price.

Home/Base
Option HB8

Diamond X300A/NA
Dual-Band
2m/70cm, 200 Watts
144-148 MHz 6.5 dBi
435-450 MHz 9.0 dBi
10.0 Feet Height

DX Engineering
X300A SO239 $139.99 + Sales Tax	X300NA N Female $139.99 + Sales Tax N Connector NOT PL259

Not Needed

DHT Electronics
2pcs RF Coax Adapter
SMA Female to SO239

Amazon

$5.50 + Sales Tax

Or use the 3' jumper below under
Better Coax & Jumpers

Coax Cable
RG8X Cable
Loss Per 100' 3.8 dB @ 150 MHz
7.9 dB @ 440 MHz
PL259 to PL259

Amazon

20 feet
$21.48 + Sales Tax

50 feet
$24.95 + Sales Tax

Other Lengths Available

Wilson Electronics
901117 Pole Mount for
Outside Home Antenna
10" length

Amazon

$19.41 + Sales Tax

From
$182.87
+ Tax

Longer
coax will
increase
price.

Home/Base
Option HB9

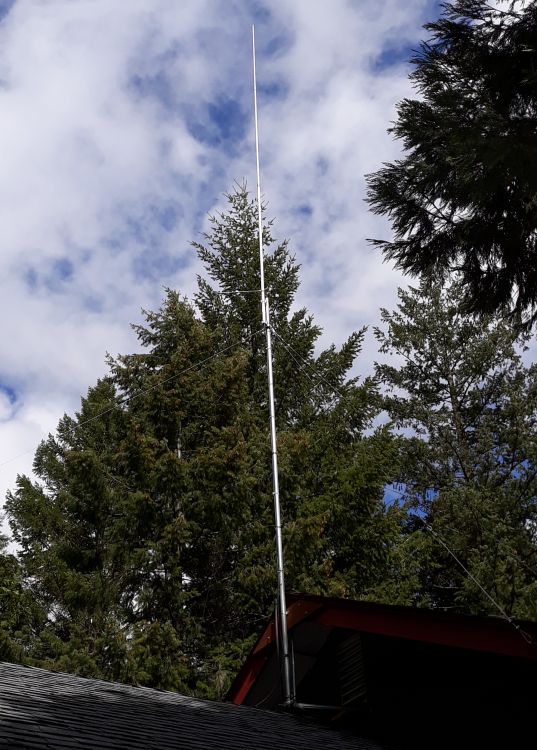

Diamond X510HD/NJ
Dual Band Tuned lower
143.5-146.5 MHz
428-442 MHz
200 Watts
144-147 MHz 8.3 dBi
430-440 MHz 11.7 dBi
17.2 Feet Height
NOT SER Plan Compatible
w/o Tuning, High SWRs on
MURS
This is my main antenna @ 33'

DX Engineering
X510HD SO239 $199.99 + Sales Tax	X510NJ N Female $199.99 + Sales Tax N Connector NOT PL259

Not Needed

DHT Electronics
2pcs RF Coax Adapter
SMA Female to SO239

Amazon

$5.50 + Sales Tax

Or use the 3' jumper below under
Better Coax & Jumpers

Coax Cable
RG8X Cable
Loss Per 100' 3.8 dB @ 150 MHz
7.9 dB @ 440 MHz
PL259 to PL259

Amazon

20 feet
$21.48 + Sales Tax

50 feet
$24.95 + Sales Tax

Other Lengths Available

Wilson Electronics
901117 Pole Mount for
Outside Home Antenna
10" length

Amazon

$19.41 + Sales Tax

From
$242.77
+ Tax

Longer
coax
will increase
price.

Home/Base
Option HB10

Diamond X700HNA
Dual Band
200 Watts
144-148 MHz 9.3 dBi
440-450 MHz 13.0 dBi
24 Feet Height
N Female Connector
2 meter 1.5:1 bandwidth 4 MHz
70 cm 1.5:1 bandwidth 10 MHz
Mast clamp hardware included.

DX Engineering

X700HNA
N Female
$389.99
+ Sales Tax

Not Needed

DHT Electronics
2pcs RF Coax Adapter
SMA Female to SO239

Amazon

$5.50 + Sales Tax

Or use the 3' jumper below under
Better Coax & Jumpers

DX Engineering 400MAX
Low-Loss Coax Assemblies
Loss Per 100'
1.8 dB @ 150MHz,
3.3 dB @ 450MHz
Velocity Factor: 84%, OD: 0.405"

DX Engineering 400MAX with N Connectors
18' $43.99 + Sales Tax	50' $78.99 + Sales Tax
Other Lengths Available

Wilson Electronics
901117 Pole Mount for
Outside Home Antenna
10" length
For this antenna you
should use something
else to get it higher but
this would work

Amazon

$19.41 + Sales Tax

From
$458.99
+ Tax

Longer
coax will
increase
price.

Single Band Antennas - 2 Meter (VHF) or 70 cm (UHF) including MURS & FRS

Usage

Antenna

Ground
Plane

Adapter

Coax
Cable

Mounting
Bracket

Total
Price

Mobile/Car
Option M11

HUSTLER CG-144
Hustler Antennas
2 Meter Collinear
Mobile Antenna
With 3/8" x 24 thread
base for ball mounts
Gain: 5.2 dB
Bandwidth: 4 MHz.
Length: 7' 1"
The Ultimate in 144 MHz.
Mobile Performance.
Works on HAM VHF/UHF, MURS & FRS
SER Plan Compatible
MAY Need Tuning.
This is my 2nd antenna
currently @ 12'

HRO

HUSTLER CG-144
$47.95
+ Sales Tax

This can be used as an extreme
mobile antenna with a car mount
(ball, bumper, hatch or mag mount).
As it is 7' tall it is not recommended
for every day use, but as an
emergency mobile antenna (it would
hit everything). Or you an use it as a
Base with the ground plane adapter,
coax and mount.

Not Needed

DHT Electronics
2pcs RF Coax Adapter
SMA Female to SO239

Amazon

$5.50 + Sales Tax

Not Needed,
Included

Hustler MBM Magnet Mount
Ultra Strong 95 Pound Pull
3/8 - 24 Thread
16 Feet of RG58 Coax PL259

HRO
Hustler MBM $24.95 + Sales Tax

- - - - - - - - OR - - - - - - - -

The MFJ-336T
Tri-Magnet Mount
3 5-inch magnets bolted
to 1/4" thick mount
17 feet RG-58AU
CAUTION: Once on it's
difficult to get off!

HRO
MFJ MFJ-336T $44.95 + Sales Tax

From
$77.95
+ Tax

Home/Base
Option HB11

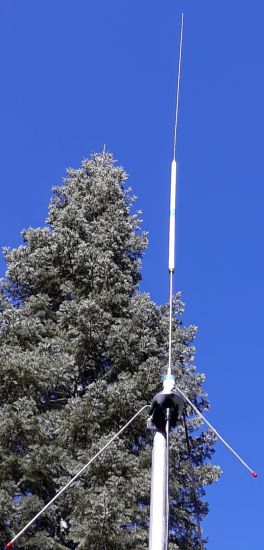

HUSTLER MKR-2
Hustler Antennas Radial
Kit for Hustler VHF Antennas

HRO

HUSTLER MKR-2
$23.95
+ Sales Tax

DHT Electronics
2pcs RF Coax Adapter
SMA Female to SO239

Amazon

$5.50 + Sales Tax

Or use the 3' jumper below under
Better Coax & Jumpers

Coax Cable
RG8X Cable
Loss Per 100' 3.8 dB @ 150 MHz
7.9 dB @ 440 MHz
PL259 to PL259

Amazon

20 feet
$21.48 + Sales Tax

50 feet
$24.95 + Sales Tax

Other Lengths Available

Wilson Electronics
901117 Pole Mount for
Outside Home Antenna
10" length

Amazon

$19.41 + Sales Tax

From
$114.68
+ Tax

Longer
coax will
increase
price.

Home/Base
Option HB12

Firestik MURSBASE
MURS Base Station by FireStik
MURS High performance
2-Meter, 5/8 wave design.
Center frequency of 153.210 MHz.
MURS ONLY, not for Ham or FRS
Height 46", Radial is 44"

Amazon

MURSBASE
$50.99
+ Sales Tax

Not Needed

DHT Electronics
2pcs RF Coax Adapter
SMA Female to SO239

Amazon

$5.50 + Sales Tax

Or use the 3' jumper below under
Better Coax & Jumpers

Coax Cable
RG8X Cable
Loss Per 100' 3.8 dB @ 150 MHz
7.9 dB @ 440 MHz
PL259 to PL259

Amazon

20 feet
$21.48 + Sales Tax

50 feet
$24.95 + Sales Tax

Other Lengths Available

Wilson Electronics
901117 Pole Mount for
Outside Home Antenna
10" length

Amazon

$19.41 + Sales Tax

From
$93.77
+ Tax

Longer
coax will
increase
price.

Single Band Antennas - 2 Meter (VHF) or 70 cm (UHF)

Usage

Antenna

Ground
Plane

Adapter

Coax
Cable

Mounting
Bracket

Total
Price

Home/Base/
Repeater
Option HB13

Tram-Browning 1491
Single Band Tunable
VHF 144-174 MHz
SO239 Connector
Base/Repeater Antenna
Fiberglass, 3 sections
7.8dBd 5⁄8 wave Specific Freq
High performance 200W rating
Bandwidth >1.5 VSWR 5 MHz
Height 14' 10"

Antenna Farm

Tram 1491
$99.95
+ Sales Tax

Not Needed

Depends on use:
For home base RG8X
For Repeater LMR400
Length as needed

Choose as needed

Depends
on Coax
& Mount

Home/Base/
Repeater
Option HB14

Cushcraft A13B2 VHF Yagi Antenna
2M Broadband Boomer Beam Antenna
Antenna Elements: 13
Antenna Power Rating: 2,000 W
Antenna Boom Length: 15.00 ft.
Frequency Coverage: 144-148 MHz
Connector: SO-239 or N Female
Beam Antenna Gain: 15.8 dBi
Beam Antenna F/B (dB): 26.0 dB
E-Plane 3 dB Beamwidth: 36 degrees
H-Plane 3 dB Beamwidth: 38 degrees
Bandwidth at 2:1 SWR: Over 4.0 MHz

HRO

Cushcraft A13B2
$289.95
+ Sales Tax
& Shipping

Not Needed

RG8X or LMR400
with N Connectors
Length as needed

Choose as needed

Depends
on Coax
& Mount

Home/Base/
Repeater
Option HB15

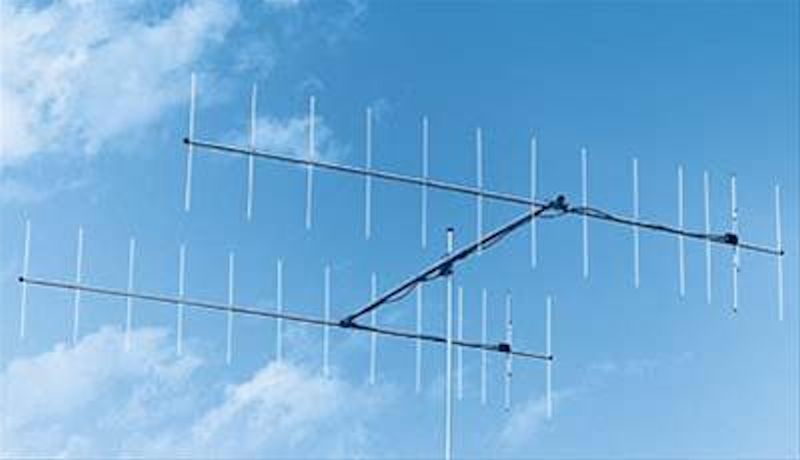

Cushcraft A26B2 VHF Yagi Antenna
2M Broadband Boomer Beam Antenna
Antenna Elements: 26
Antenna Power Rating: 2,000 W
Antenna Boom Length: 15.00 ft.
Frequency Coverage: 144-148 MHz
Connector: SO-239 or N Female
Beam Antenna Gain: 18.8 dBi
Beam Antenna F/B (dB): 26.0 dB
E-Plane 3 dB Beamwidth: 36 degrees
H-Plane 3 dB Beamwidth: 19 degrees
Bandwidth at 2:1 SWR: Over 4.0 MHz

HRO

Cushcraft A26B2
$629.95
+ Sales Tax
& Shipping

Not Needed

RG8X or LMR400
with N Connectors
Length as needed

Choose as needed

Depends
on Coax
& Mount

Home/Base/
Repeater
Option HB16

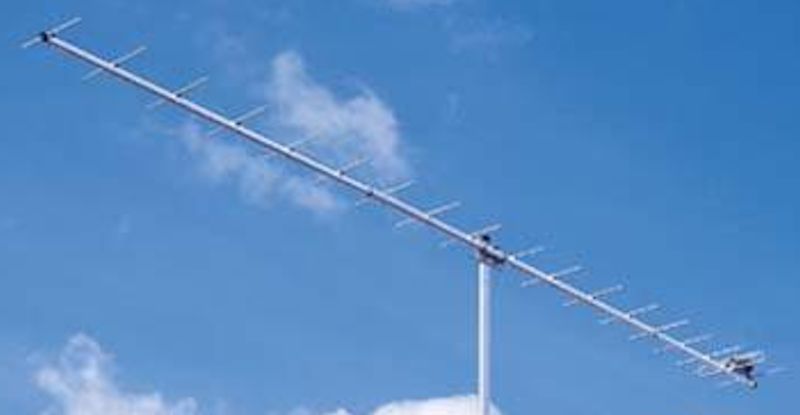

Cushcraft A719B UHF Yagi Antennas 70cm Broadband Boomer Beam Antenna Antenna Elements:19
Antenna Power Rating: 2,000 W
Boom Length: 13.50 ft.
Frequency Coverage: 430-450 MHz
Connector Type:Type N, female
Beam Antenna Gain: 15.5 dBd
Beam Antenna F/B (dB): 25.0 dB
E-Plane 3 dB Beamwidth: 24 degrees
H-Plane 3 dB Beamwidth: 19 degrees
Bandwidth at 2:1 SWR: 20.0 MHz

HRO

Cushcraft A719B
$289.95
+ Sales Tax
& Shipping

Not Needed

RG8X or LMR400
with N Connectors
Length as needed

Choose as needed

Depends
on Coax
& Mount

------------------------------------------------------------------------------

The longer it is the better it hears. The more gain the better it talks. Higher up is better for both. But,
the more gain the narrower the bandwidth (IE: less effective and safe on a wider frequency range.)
3 dB Antenna gain doubles your effective power, Coax Cable 3 dB loss cuts it in half.
Gain in dBd = gain in dBi - 2.15 dB, Gain in dBi = gain in dBd + 2.15 dB.

The ideal height with flat terrain is 35' above ground. But here there are ridges and trees
so 60' - 70' would be better for Hams Only just go the higher the better

MURS/FRS should be above roof line, but not too high to interfere with other areas.

I have started testing the SWRs of some of these antenna, to see how well they cover your needs. See results here.

Better
Coax
&
Jumpers

DX Engineering 400MAX
Low-Loss Coax Assemblies
Loss Per 100'
1.8 dB @ 150 MHz
3.3 dB @ 450 MHz
Velocity Factor: 84%
Outside Diameter:0.405"

DX Engineering 400MAX
18' PL259 $41.99 + Sales Tax	18' N Connectors $43.99 + Sales Tax
50' PL259 $69.99 + Sales Tax	50' N Connectors $78.99 + Sales Tax
Other Lengths Available
Adapter PL259 to N Female 2 Pack $18.99 + Sales Tax	Adapter N Female to PL259 2 Pack $12.99 + Sales Tax

SMA Female to UHF Female	SMA Female to N Female

To put less strain on the radios
antenna connector add this jumper
between the coax coming from the
antenna and the radio's
antenna connector.
SMA Female Radio Connector
SO239 Female Or N Female
3' RG58 Ohm Coaxial Cable

Amazon

3' Jumper SMA-F to UHF-F
$7.99 + Sales Tax

3' Jumper SMA-F to N Female
$15.56 + $4.59 + Sales Tax

Other
House
Mounts,
Masts
and
Towers

Rohn Products WM24D
Galvanized Wall Mount
Clearance 24"
Masts from 7/8" to
2 3/4" not included
Good for tall masts to
get antenna higher

DX Engineering
$52.99 + Sales Tax
Other Clearances Available

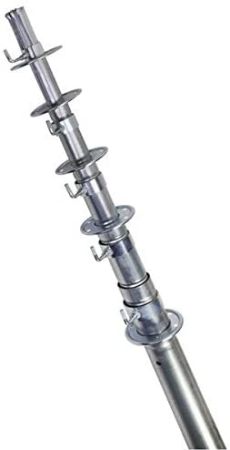

Telescoping Masts
Requires: Guy Wire,
Turnbuckles, Clamps,
Eye Hooks & Base Plate
Pricing and sizes coming soon

Rohn 60' Guyed
Tower Kit
90/70 MPH Rated
Contains everything
you need, except
Rotor Shelf
Thrust Bearing
Thrust bearing Shelf
Foundation,
& Installation
or wall bracket, if wanted

3Star Inc.

$3,111.84
+ Sales Tax &
Freight Shipping

OPTIONAL
NOT NECESSARY

Other
Useful
Feedline
Items

Coax Switch SO239 Connectors
Daiwa CS-201A 2 Port Switch
2 antennas to 1 radio
or 2 radios to 1 antenna
Frequency (Up to): 600 MHz
Power: 2.5 KW Pep / 1 kW CW
Connectors: SO-239

Amazon

$34.75 + Sales Tax

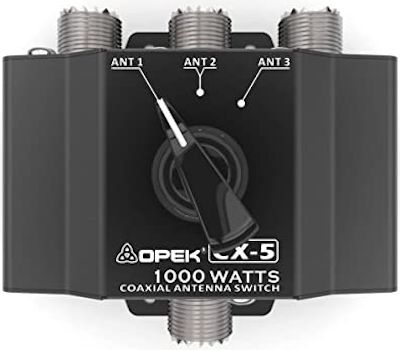

Coax Switch SO239 Connectors
OPEK CX-5 3 Port Switch
3 antennas to 1 radio
or 3 radios to 1 antenna
Frequency (Up to): 500Mhz
Power Rating: 1kW
Connectors: SO-239

Amazon

$34.98 + Sales Tax

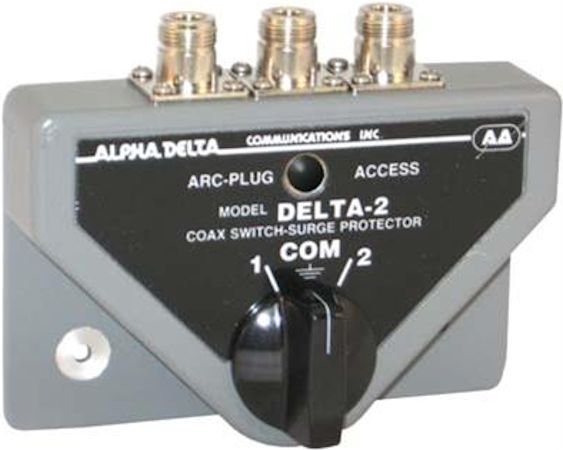

Coax Switch N Connectors
+ Lightning Protection
Alpha-Delta 2 Port Switch
2 antennas to 1 radio
or 2 radios to 1 antenna
All Ports Grounded
Rating 30 MHz:1,500W PEP/ CW
Loss less that 0.50 dB at 1.6 GHz
Connectors: N female

DX Engineering

$94.99 + Sales Tax

Coax Switch N Connectors
+ Lightning Protection
Alpha-Delta 4 Port Switch
4 antennas to 1 radio
or 4 radios to 1 antenna
All Ports Grounded
Rating 30 MHz:1,500W PEP/ CW
Loss less that 0.50 dB at 1.6 GHz
Connectors: N female

DX Engineering

$119.99 + Sales Tax

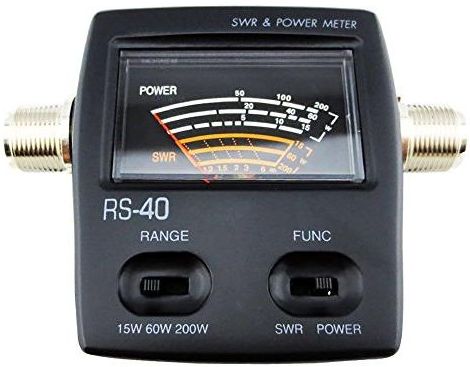

SWR Meter SO239
Teng RS40 VHF/UHF
140-150Mhz & 430-450Mhz
Power: 15W/60W/200W
Min Power: 1W
Connectors: SO239

Amazon

$48.99 + Sales Tax

A SWR meter is good to make sure
there is nothing wrong with your
antenna or feedline. It also shows
how much power is being transmitted.
The can also be used to tune an antenna.

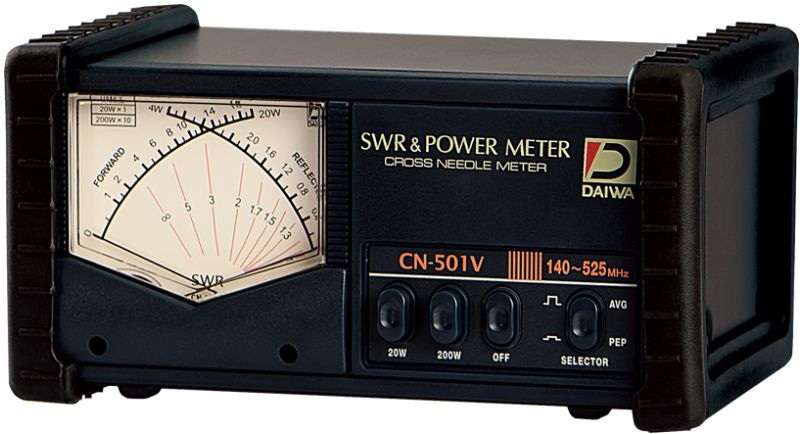

SWR Meter SO239
Daiwa 501 Series VHF/UHF
Bench Meters CN-501V
140-525 MHz
Power: 20W/200W
Style:Cross needle
Illumination:Yes
DC Power for Illumination Only
Connectors: SO-239

DX Engineering

$105.99 + Sales Tax

SWR Meter N Connectors
Daiwa 501 Series VHF/UHF
Bench Meters CN-501VN
140-525 MHz
Power: 20W/200W
Style:Cross needle
Illumination:Yes
DC Power for Illumination Only
Connectors: N Female

DX Engineering

$115.99 + Sales Tax

Used Gear: Radios, Antennas and More
#	Description	Price	Condition	Contact Name	Contact Phone
Your for sale items could be here. Contact me to get them listed.
1	Baofeng UV-5R: with Speaker mic, original 1800mAh & 2 -3800mAh Batteries, Nagoya NA-771 Antenna, original Antenna, Charger & Beltclip, programmed for SER Plan	$35.00	Used - Very Good	AJ6KJ - Terry	474-3711 / cell: 407-9665
2	Baofeng UV-82C (Commercial Version): with Speaker Mic, original 2800mAh & 2 - 3800mAh Batteries, Nagoya NA-320A Antenna, original Antenna, Charger & Beltclip, programmed for SER Plan	$50.00	Used - Very Good	AJ6KJ - Terry	474-3711 / cell: 407-9665
3	Alinco DJ-500TB: 1500 mAh Battery, Antenna, Earphone Microphone, Charger & Beltclip, programmed for SER Plan	$75.00	Used - Very Good	AJ6KJ - Terry	474-3711 / cell: 407-9665
4	40' Tubular Steel Crank-Up Tower (20' collapsed): with tilt base and wall bracket	~~$650.00~~ SOLD	Good	AJ6KJ - Terry	474-3711 / cell: 407-9665
5	Power Supply: Astron RS-20A, 13.8V, 20 amps peak / 16 amps continuous (New: $139.95)	$80.00	Used - Very Good	AJ6KJ - Terry	474-3711 / cell: 407-9665
6	Power Supply: Pyramid PS-21KX, 13.8V, 20 amps peak / 18 amps continuous (New: $119.95)	$70.00	Used - Very Good	AJ6KJ - Terry	474-3711 / cell: 407-9665
7
8

Places to find Amateur Radio Equipment
3star Inc Towers, Masts & etc.	Amazon	AIR802 Coax & Connectors	The Antenna Farm
Baofeng	Bentronics Redding, Ca	Bridgecom Systems	DX Engineering
Gigaparts	Ham Radio Outlet	Powerwerx PowerPole & More

Want to keep your equipment up and running without electricity?

Why would I have a battery set-up if I have a generator?

If you have an all house generator with automatic cut over you probably wouldn't. But if you have one that you have to take out and hookup when there is a power outage, you may want the battery set-up. First it is ready to go which gets you running sooner. Second when your generator is running it probably has excess power. This can be used to charge the batteries. You can then use the batteries to run what you need and turn the generator off. That will save you fuel, which saves you money. It also saves you trips to get more fuel during a long power outage. Third batteries are quiet, generators aren't.

Batteries

Charger/Battery Tender

Monitor

Power Converter/Inverter

Solar

<--------------- This is a complete setup to run things off of 120 volts, to be used only when the power goes out. --------------->

Deep Cycle Battery
12 volt various amp hours

For a 50 watt (or more) radio
I recommend at least
1 - 70 Ah battery

1 - 75Ah Battery

I have been using a 33Ah battery
with a 5A charger and it works,
but for an emergency situation
I don't thing it would be sufficient.
Have replaced it with 80Ah.

Battery Tender
12Volt 5Amp
Charger/Maintainer
Battery Tender 12v 5a

Recommend 10-25% of
batteries Ah rating.

Amazon

$74.95 + Sales Tax

Caution. Some other charger
brands have had 60 cycle hum
or caused RF interference!
(NOCO [RF], Adpow [60 cycle])

DROK 10-100V Digital
Battery Monitor
Capacity Tester

Amazon

$15.69 + Sales Tax

Power Inverter
to convert 12v DC to 120v AC.
More Coming

A true sine wave one is better
than a modified sine wave one,
but is also more expensive.
Make sure to get one with the
wattage rating, and a little
extra, that you need.

Solar Panels
Various sizes and wattages
Solar Paanels

Pictured: BougeRV 170 Watts
Monocrystalline Solar Panel
12 Volts Mono Solar Cell
Charger High Efficiency
Module for RV, Marine,
or Off Grid.

- - - - - - - - - - - - - - - - - - - - -

Requires Controller, Connectors,
Combiner (if using more than 1),
and Wires (for wiring).
More Coming

- - - - - - - - - - - - - - - - - - - - -

Power Controller

Or use the West Mountain Radio
Epic PWRgate Power controller
to run 12 volt equipment directly.
Functions as a: Battery Charger,
UPS and Solar Controller when
used with: DC Power Supply,
Batteries, Solar Panels and
your 12V equipment.

- - - - - - - - - - - - - - -

Click picture to see my parts

<--- Above and below are complete setups to run
things off of 12 volts, can be used full time. --->

2 or more Deep Cycle Batteries
12 volt various amp hours.

Click picture to see mine
For a 50 watt (or more) radio
I recommend at least
2 - 35 Ah batteries.
Battery Cables to interconnect
batteries NOT included.

2 - 35Ah Batteries

2 - 100Ah Batteries

- - - - - - - - - - - - - - - - - - - - -

You will need one pair of battery
cables to connect multiple batteries.
1 pair less then the number of batteries.

9 Inch

West Mountain Radio
PWRGate
Power controller

A Super PWRgate is a
12 volt backup power system
rated at 40 amperes from either
Power Supply or Battery.
Built-in four-stage battery charger,
selectable for 1, 4, 7 or 10 amperes.
Connected equipment will instantly
switch to battery during a power
blackout or power supply failure,
working like a UPS.
Optimized for use with GELLED &
AGM type batteries, but will keep
flooded lead acid and marine type
batteries near full charge as well.
Uses Powerpole® connectors.
Dimensions: 1.65"H x 5.25"W x 3.9"D

Epic PWRgate w/solar panel input. -->

- - - - - - - - - - - - - - - - - - - - -

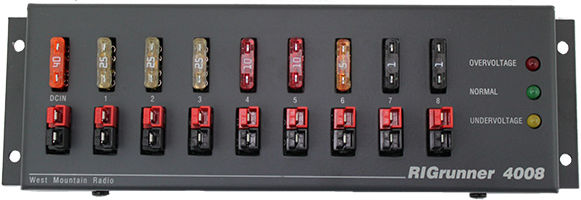

West Mountain Radio
RIGRunner
Distribution Strip

RIGRunner connects your 12VDC
equipment to power source.
Uses Powerpole® connectors.
40 amp 12VDC continuous duty.
Precision voltage monitoring with
alarms for over or under voltage.

Available with different number
of outlets, from 4 - 12.

- - - - - - - - - - - - -

Click picture to see my setup

DC Power Supply
Run a mobile as a base radio with a
120v AC to 12v DC power supply.
More Coming

<--------------- This is a complete setup to run things off of 120 volts, to be used only when the power goes out. --------------->

If you are running a 12v radio (IE: mobile radio) in the house you can run multiple batteries in parallel (positive to positive and negative to negative) or just one. Hook the charger, monitor and radio to the battery(s) full time. That way you don't switch the batteries and DC power supply back and forth. If you are running HT's you will need an inverter to run their chargers and anything else than needs to be plugged into a 120v outlet.

For more information on the
